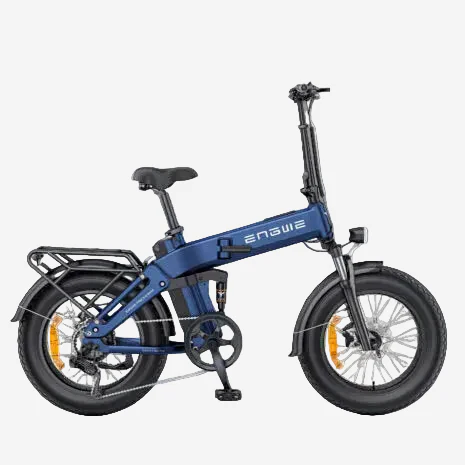

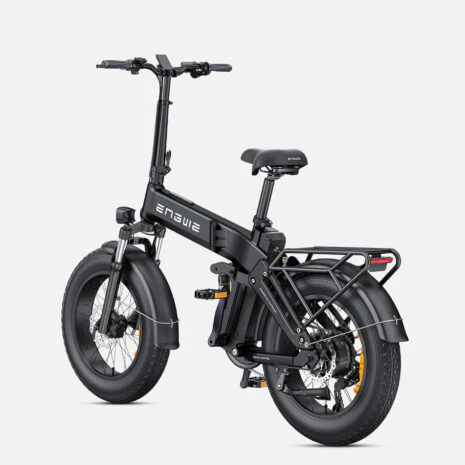

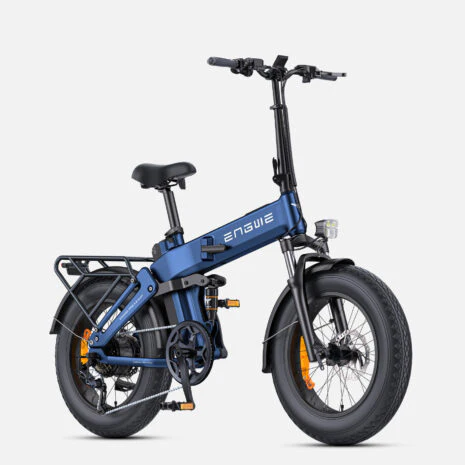

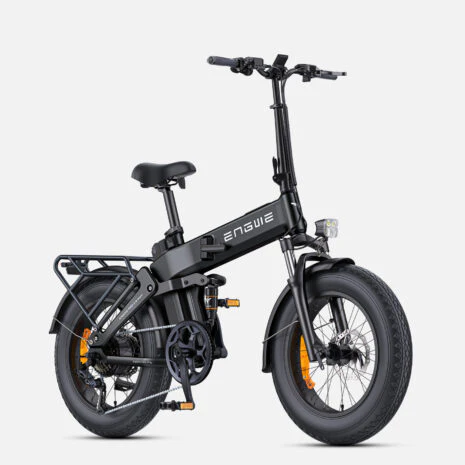

The ENGWE Engine Pro 3.0 Boost is a premium full-suspension folding electric bike built for riders who demand performance, range, and smart connectivity. With a 48V hub motor delivering 90 Nm of torque, a 720Wh Samsung battery, ENGWE IoT with GPS and anti-theft, and a magnesium alloy step-through frame, the Engine Pro 3.0 Boost is the most capable version of ENGWE's iconic Engine Pro line yet.

---

Key Features

• 90 Nm Torque Motor: 48V hub motor with torque sensor delivers 90 Nm of responsive, natural power assist across 5 PAS levels — smooth on the flat, effortless on climbs.

• Exceptional Range: 48V 15Ah (720Wh) Samsung 21700 battery delivers up to 130 km (PAS 1), 108 km (PAS 3), or 80 km (PAS 5) of real-world range on a single charge.

• Full Suspension: 50mm front hydraulic fork with adjustable lockout and 62mm rear travel for a smooth, controlled ride across tarmac, gravel, sand, and country roads.

• ENGWE IoT Module: Built-in GPS, 4G, and Bluetooth connectivity with ENGWE App control and anti-theft function — track your bike and ride smarter.

• Hydraulic Dual-Piston Brakes: 180mm hydraulic dual-piston disc brakes front and rear for precise, powerful stopping in all conditions.

• Fast Charging: 54.6V 8A charger for rapid top-ups and minimal downtime.

• Smart Lighting: 30 Lux front light with integrated e-horn. Auto-brightening rear light when braking or shaking.

• Foldable Magnesium Alloy Frame: Step-through design with integrated battery folds compactly to 97 × 53 × 81 cm for easy storage and transport.

• CE Certified: CE EN15194 by TUV certification for full EU compliance.

---

📏 Specifications

General

• Model: Engine Pro 3.0 Boost

• Bike Weight: 34.7 kg (76.5 lbs)

• Gross Weight: Approx. 42.7 kg (101.1 lbs)

• Max Load Capacity: 150 kg (330 lbs)

• Rider Height: 165 cm – 190 cm (5'5" – 6'2")

• Pedal Assist: 5 Levels

• Real-World Range: 130 km (PAS 1) / 108 km (PAS 3) / 80 km (PAS 5)

• Waterproof Rating: IPX7 (Wiring) / IPX6 (Display & Lights) / IPX5 (Motor, Controller & Battery Box)

• Certification: CE EN15194 by TUV

• Terrain: Tarmac Roads, Gravel-Paved Paths, Sandy Beaches & Grass, Country Roads & Paved Trails

Frame & Fork

• Frame Style: Foldable, Full Suspension, Step-Through Design

• Frame Material: Magnesium Alloy with Integrated Battery

• Fork: Hydraulic, One-Piece Die-Cast Aluminium with Adjustable Lockout

• Front Suspension Travel: 50mm

• Rear Suspension Travel: 62mm

Wheels & Tyres

• Tires: 20" × 4.0" Urban Hybrid Tyres

• Puncture Protection: 3mm Anti-Puncture Layer

• Wheels: 20-inch, Double-Wall Aluminium, 36-Hole, 12-Gauge Spokes, Black

E-Bike System

• Motor: 48V Hub Motor

• Max Torque: 90 Nm

• Assist System: Torque Sensor

• Battery: 48V 15Ah (720Wh), Samsung 21700 Cells with BMS

• Charger: 54.6V 8A Output

• Display: 3.5" LCD Colour Display, ENGWE-Designed, Mid-Position

• IOT: ENGWE IoT Module with GPS, 4G & Bluetooth

• ENGWE App: App Control & Anti-Theft Function

• Front Light: 30 Lux with Integrated E-Horn

• Rear Light: Auto-brightens when braking or shaking

Brakes

• Brake Type: Hydraulic, Dual-Piston

• Disc Rotor: 180mm Front & Rear

Drivetrain

• Chain: Anti-Rust, 1/2" × 3/32", 124 Links

• Chainring: 48T

• Crank: 170mm

• Rear Derailleur: Shimano Tourney RD-TY300, 7-Speed

• Shifter: Shimano SL-M315-7R

• Cassette: 7-Speed, 14T–28T

• Pedals: Boron Steel, Non-Foldable

Cockpit

• Handlebars: 680mm Width

• Stem: Foldable

• Saddle: ENGWE Soft Saddle

• Seat Post: 10-Level Adjustable

• Seat Clamp: Quick-Release

---

👥 Geometry (Unfolded)

• A – Wheelbase: 110.1 cm

• B – Total Length: 168 cm

• C – Reach: 39.7 cm

• D – Standover Height: 68 cm

• E – Minimum Saddle Height: 85 cm

• F – Maximum Saddle Height: 104 cm

• G – Minimum Handlebar Height: 120 cm

• H – Maximum Handlebar Height: 133 cm

---

📦 Size & Packaging

• Rider Height: 165 cm – 190 cm (5'5" – 6'2")

• Max Load Capacity: 150 kg (330 lbs)

• Package Dimensions (L×W×H): 140 × 29.5 × 65 cm

Folded Size: 97 × 53 × 81 cm

• A – Height: 81 cm

• B – Length: 97 cm

• C – Width: 53 cm

Please note: There may be a difference of 0–5 cm between measured and actual data.

---

Ideal For

The ENGWE Engine Pro 3.0 Boost is perfect for riders seeking a premium, full-suspension folding e-bike with serious range, smart connectivity, and all-terrain capability. Whether commuting daily or exploring off the beaten track, it delivers a confident, comfortable, and connected ride every time.
